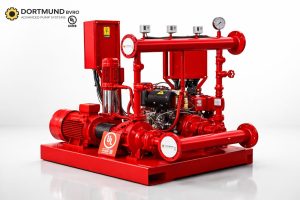

Dortmund Firefighting Pump System
Electric + Diesel + Jockey Pump
Electric Fire Pump
Approval
Flow Rate(GPM) 250
Pressure(Bar) 8
RPM 2950
CASING Cast Iron
Impeller Bronze
Shaft STAINLESS STEEL
Shaft Sleeves Bronze
Motor Approval
Make Enclosure NEEMA
Voltage 415V,50HZ
Rating 50HP/50HP
Diesel Fire Pump Approval
Flow Rate(GPM) 250
Pressure(Bar) 8
Pump Type End Suction
RPM 3000
CASING Cast Iron
Impeller Bronze
Shaft STAINLESS STEEL
Shaft Sleeves Bronze
Engine Approval
Model Heat Exchange
Rated HP 55HP
Rated Speed 3000 (RPM)
Accessories:
Approval
Fuel Tank 70 US Gallons
Exhaust Silencer 4″ Flanged
Battery 12 VDC
Flowmeter 4″,MAKE-GERAND
Pressure Relief Valve
Jockey Pump
Duty Type 22GPM/90M
RPM 2900
CASING STAINLESS STEEL
Impeller STAINLESS STEEL
Type TEFC (IP55)
Rating Speed 2900 RPM
Approval
Line Voltage 208V-240V
Enclosure NEMA 2
Mounting Wall mounted
